Our Products

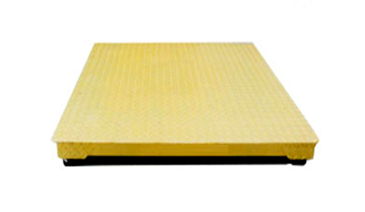

FLOOR SCALE

No. Spec. Size No. of load cell
1 1-5t 1*1 m 4
2 1-5t 1.2*1.2 m 4
3 1-5t 1.2*1.5m 4
4 1-5t 1.5*1.5 m 4
5 1-5t 1.5*2m 4
6 1-5t 2*2 m 4
7 1-5t 2*3 m 4
8 1-8t 2*4 m 4
9 5-10t 2.2*4.5m 4
10 5/12-10/20t 2.5m*5m 4
11 12-20t 2.5m*6m 4

Equipped Products: Weighing Indicator

D10QP
AC/DC power supply,rechargable battery
With or without built in printer
2 times weighing
Tare and pre-tare
Real time display
Save 255 vehicle No.& its relative tare, 100 cargo No. & 205 groups weighing records
T3
AD/DC power supply; built-in rechargeable battery; insufficient power Protection
Battery volume testing & voltage display
Manual accumulation & accumulation deleting
10 times enlargement of weight value
Weight value holding
RS232C (optional); adjustable baud rate

Load cell

Rated load: 0.5,1,1.5,2,2.5,3,5,7.5,10t
Output sensitivity:  3.0±0.004 mV/V
Nonlinearity: ±0.02%F.S
Nonlinearity: ±0.01%F.S
Creep(30 min):  ±0.02%F.S
Zero Balance:  ±1%F.S
Temp. Effect on zero:  ±0.03%F.S/10℃
Temp. Effect on sensitivity:  ±0.0016%F.S/10℃
Input Impedance:  400±5Ω(ohms)
output Impedance:  350±3Ω(ohms)
Insulation Resistance: ≥5000MΩ
Safe load: 150%F.S
Protection Class: Ip67
Limit load: 300%F.S
Recommend voltage: 10V
Max. voltage : 15V

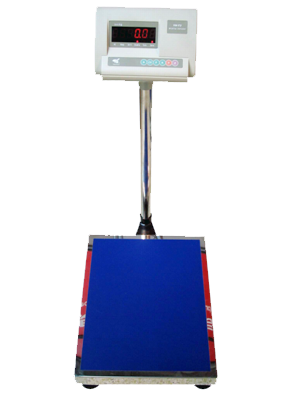

PLATFORM SCALE

Large and distinct display
Equipped High accuracy Load Cell and advanced software for providing rapid and stable return to Zero
Auto Balancing can analyze a precise average from fluctuating weighed values
Optional Indicator: A9P with each weighing value or automatic or manual total value after taking number of weights. with built in printer or separate printer connected with parallel printer port
RS232 interface for Score Board, PC & printer connection (with A9P Indicator only)
Rated Capacity 100 Kgs 150 Kgs 200 Kgs 250 Kgs 300 Kgs 100 Kgs
Resolution 10g 10g to20g 10g to 50g 10g to50g 10g to 50g 10g to 50g
Platform Size 400x500mm 400x500mm 400x500mm 400x500mm 400x500mm 600x600mm
Platform Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Tare Range 0 ~ 30 Kgs 0 ~75 Kgs 0 ~100 Kgs 0 ~125 Kgs 0 ~ 150 Kgs 0 ~ 250 Kgs
Weighing Range 0.200 ~ 60 Kgs 0.400~150 Kgs 0.400~200 Kgs 1 ~ 250 Kgs 1 ~ 300 Kgs 1 ~ 500 Kgs
Operating Temperature -10° C ~ +50° C
Indicator A12E A12E A12E A12E A12E A12E
Power Backup A12E Indicator – up to 150 Hours and A9P Indicator – up to 25 Hours

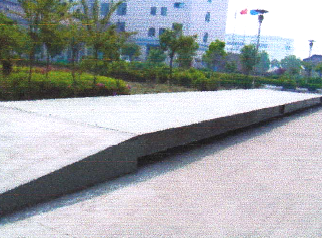

YAOHUA BRAND TRUCK SCALE

No. Spec. Size Qty of load cell used Remark
1 SCS-30t 3x9 M 4 A3 type steel material
2 SCS-40t 3x9 M 4
3 SCS-50t 3x9 M 6
4 SCS-80t 3x9 M 6
5 SCS-30t 3x14 M 6
6 SCS-40t 3x14 M 6
7 SCS-50t 3x14 M 6
8 SCS-80t 3x14 M 6

Load cell

Rated load: 5,10,15,20,30 & 50MT
Sensitivity:  2.0±0.002 mV/V
Integrated Enor: ±0.02%F.S
Creep(30 min):  ±0.03%F.S
Zero Balance:  ±1%F.S
Temp. Effect on zero:  ±0.02%F.S/10
Temp. Effect on span: ±0.02%F.S/10
Input Impedance:  400±5Ω(ohms)
output Impedance:  352±2Ω(ohms)
Insulation Resistance: ≥5000MΩ
Safe load: 150%F.S
Protection Class: Ip67
Limit load: 300%F.S.
Recommend voltage: 10~12V DC
Max. voltage : 15V DC

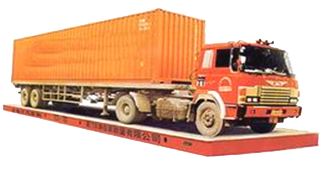

TRUCK WEIGHING SCALE

Electronic truck weighing scale is widely used in port, warehouse, factory, freight yard etc. As the technology of the high accuracy weighing load cell mature day by day. the mechanical truck scale is substituted by electronic truck scale which owns high precision, good stability and is easy to operate. The electronic truck scale adopts box structure with U-shape Beam technology, Robotic, dioxide protect welding. The platform is made of A3 Type Alloy Steel (Q235), which is rigid and will not be bent after long use. Before painting it is shot blasted and burnished to increase adhesive force. After this step, it is painted with anti corrosive primer and acrylic polyurethane coating for a longer use in adverse environments. These Scales are imported as completely built up condition (CBU) according to buyers required specification.

SI.# Model. Capacity Platform Size Load Cells
01 SCS-50 50MT 3M x 9M 6 Load Cells
02 SCS-80 80MT 3M x 9M 6 Load Cells
03 SCS-80 80MT 3M x 12M 8 Load Cells
04 SCS-80 80MT 3M x 14M 8 Load Cells
05 SCS-100 100MT 3M x 16M 10 Load Cells
06 SCS-120 120MT 3M x 18M 10 Load Cells

Equipments & Accessories supplied with the Truck Weighing System

Electronic truck weighing scale is widely used in port, warehouse, factory, freight yard etc. As the technology of the high accuracy weighing load cell mature day by day. the mechanical truck scale is substituted by electronic truck scale which owns high precision, good stability and is easy to operate. The electronic truck scale adopts box structure with U-shape Beam technology, Robotic, dioxide protect welding. The platform is made of A3 Type Alloy Steel (Q235), which is rigid and will not be bent after long use. Before painting it is shot blasted and burnished to increase adhesive force. After this step, it is painted with anti corrosive primer and acrylic polyurethane coating for a longer use in adverse environments. These Scales are imported as completely built up condition (CBU) according to buyers required specification.

Description of YAOHUA Truck Weighing Scale

Indicator: XK3190-D10 is the most advanced Weighing Indicator with a built in micro printer and battery up of up to 25 hours. It adopts very high precision A/D conversion technology, equipped with a capacity of 1-8 load cells. It is Password protected and can save 1500 vehicle ID\Net weight, 201 cargo ID/cargo name, 100 customer ID\customer name, 100 notes and 1501 weighing records weighing data save protection in case of power off. The HM9B 3C 30T Load Cells are OIML approved and are with very high accuracy and a capacity of 30MT each. It is of alloy steel construction, oil-proof, fully water-proof (IP-68) and it is suitable for all kinds of tough environments. Its Limit Load is 300% of FS. A Truck Scale Management Password protected Software including a Computer system with Printer is provided for unlimited data entry and perfect data backup system for the Truck scales management professionally.

The YAOHUA Electronic Truck Scale is coming with a 3 years warranty. These scales are in the Bangladesh market since 2004. It is widely accepted by the buyers for its unmatched performance for over the years.
